Vortex Crossfire HD 3-9x40
- In stock, ready to ship
Whether threading shots through dense timber or dialing in at range, Crossfire® HD delivers sharper detail and improved light transmission. And with an illuminated center dot to boost accuracy in low light, it delivers the confidence to own any hunt.
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 12.5 | 1.7 | 1.9 | 4.9 | 4.0 | 3.7 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.9 | 1.7 |
Feature Tech
HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
Illuminated Reticle
Provides precise aiming under low-light conditions.
Fully Multi-Coated Lenses
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Fast-Focus Eyepiece
Allows for quick and easy reticle focusing.
Aircraft Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Low-Glare Matte Black Anodize
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Waterproof
Designed to withstand harsh weather conditions.
Fogproof
Designed to withstand a wide range of temperatures.
Shockproof
Designed to withstand the highest levels of recoil and impact.
- Neoprene Cover
- 3" Sunshade
- Turret Tool
- Lens Cloth
- CR2032 Battery
Specifications
| Magnification | 3-9x |
|---|---|
| Objective Lens Diameter | 40 mm |
| Focal Plane | Second Focal Plane |

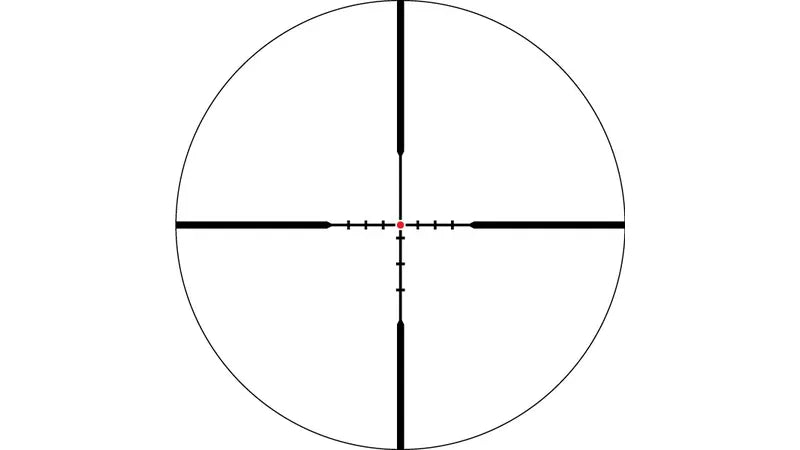

| Reticle | Illuminated Dead-Hold® 2A BDC (MOA) |
| Eye Relief | 3.8" |
| Field of View | 37.2' - 12.4' @ 100 yds. |
| Turret Style | Capped |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 72 MOA |
| Max Windage Adjustment | 72 MOA |
| Parallax Setting | 100 yds. |
| Length | 12.5" |
| Weight | 17.1 oz. |
Product Videos
Manuals & Parts
Vortex Crossfire HD 3-9x40 Product Manual
