Vortex Diamondback HD 2000 Laser Rangefinder
- In stock, ready to ship
Made for practical hunters who value no-excuses performance, Diamondback® HD 2000 is your ranging workhorse in the field. Built tough to withstand the abuse your hardest hunts can dish out, its easy-to-use controls and high-definition optical system handle everything from point-blank shots in tight timber to longer-distance game with shoulder-crushing accuracy. Simple. Tough. Reliable. It’s the rangefinder that lives up to its tag-punching promise, hunt after hunt.
Feature Tech
Ranging Modes

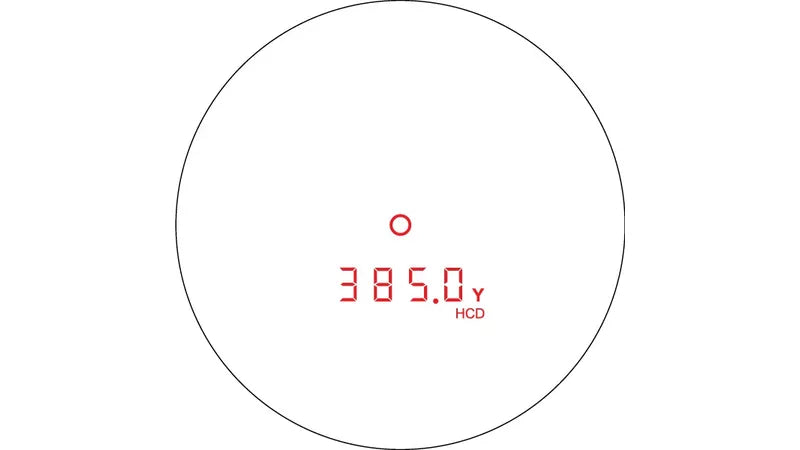

Horizontal Component Distance (HCD)
Displays the slope angle compensated distance to the target.
Line of Sight (LOS)
Displays the actual line of sight range.
Scan Feature
Displays continuous distance readings while panning across a landscape.
Target Modes
Normal Mode
The standard mode providing the target's range with the strongest range result. Recommended for most situations.
Last Mode
Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
XR™ Plus Lens Coatings
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
ArmorTek®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Rubber Armor
Provides a secure, non-slip grip, and durable external protection.
Red OLED Display
Optimized for low light.
Ranging Format
Range in yards or meters.
Diopter
Adjusts for differences in a user's eyes. Located on eyepiece.
Waterproof
Designed to withstand harsh weather conditions.
Shockproof
Designed to withstand the highest levels of impact.
Tripod Adaptable
Allowing use on a tripod or car window mount. Tripod adapter may be required.
Reticle
What's in the box?
- Soft Carry Case
- Wrist Lanyard
- Bungee Cord Lanyard
- Lens Cloth
- Utility Clip
- 2.5mm Hex Wrench
- Hook and Loop Harness Attachment
- CR2 Battery
Specifications
| Magnification | 7x |
|---|---|
| Objective Lens Diameter | 24 mm |
| Eye Relief | 16.0mm |
| Angular Field of View | 6.4º |
| Linear Field of View | 335' @ 1000 yds |
| Range Reflective (yards) | Up to 2,000 yds. |
| Range Tree (yards) | Up to 1,800 yds. |
| Range Deer (yards) | Up to 1,400 yds. |
| Min Range | 5 yds. |
| Accuracy | 1 yds. @100 yds. |
| Length | 4.1" |
| Height | 3.1" |
| Width | 1.8" |
| Weight | 7.6 oz. |
| Max Angle Reading | +/- 60º |
