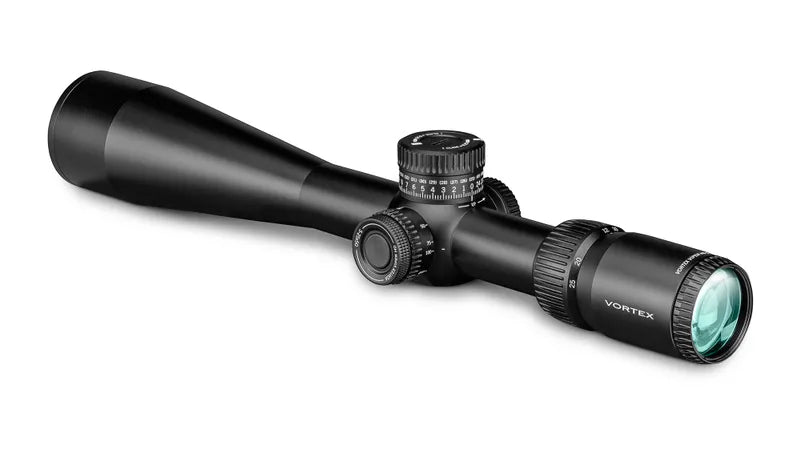

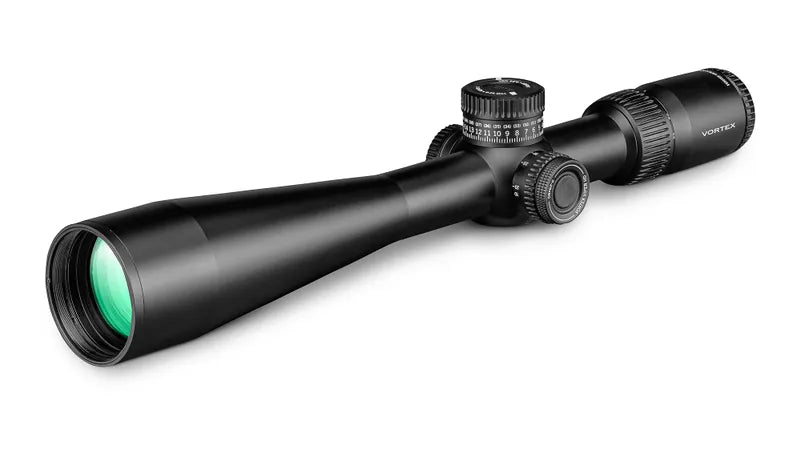

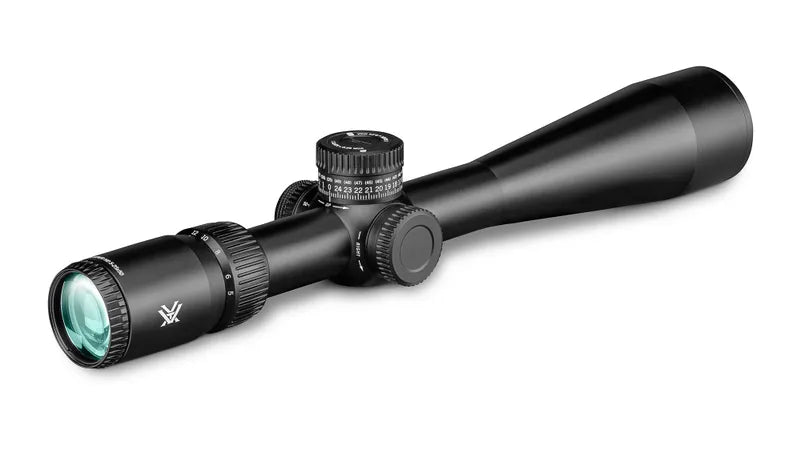

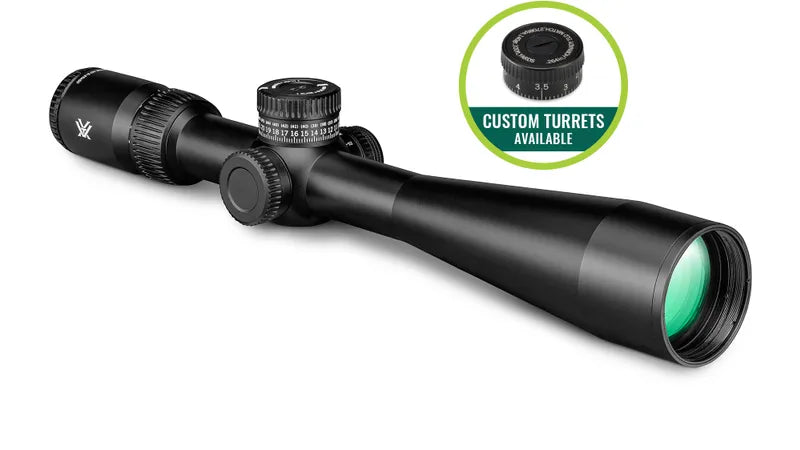

Vortex Viper HD 5-25x50 VMR-3 MOA
- In stock, ready to ship
When success rides on the perfect shot, rely on the exceptional versatility and optical performance of Viper® HD. From predators to big game, river bottoms to the Rockies, there’s a field-proven configuration for every hunting application. Ultra-rugged. Remarkably adaptable. Each member of the Viper® HD family delivers outstanding image clarity, resolution, and sharpness to ensure your target comes into view with sharp detail. Viper® HD also boasts enhanced features for unmatched accuracy at extended ranges while also excelling in the low light of dawn and dusk when game is most active.
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 15.2 | 2.1 | 1.8 | 5.5 | 6.3 | 3.4 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.3 | 1.7 |
Feature Tech
HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
RevStop® Zero System
Patented streamlined design offers an easy to set, reliable return to zero after turret adjustments.
Fully Multi-Coated Lenses
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Exposed Locking Elevation Turret
Integrated locking mechanism prevents accidental adjustment. Elevation turret provides fast, accurate, easily read elevation adjustments.
Illuminated Reticle
Provides precise aiming under low-light conditions.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Argon Gas Purged
Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.
Fast-Focus Eyepiece
Allows for quick and easy reticle focusing.
Aircraft Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
ArmorTek®
Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.
Low-Glare Matte Black Anodize
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Waterproof
Designed to withstand harsh weather conditions.
Fogproof
Designed to withstand a wide range of temperatures.
Shockproof
Designed to withstand the highest levels of recoil and impact.
What's in the box
- Neoprene Cover
- Sunshade
- RevStop® Zero Ring
- Custom Turret Tool
- CR2032 Battery
- Lens Cloth
Specifications
| Magnification | 5-25x |
|---|---|
| Objective Lens Diameter | 50 mm |
| Focal Plane | Second Focal Plane |

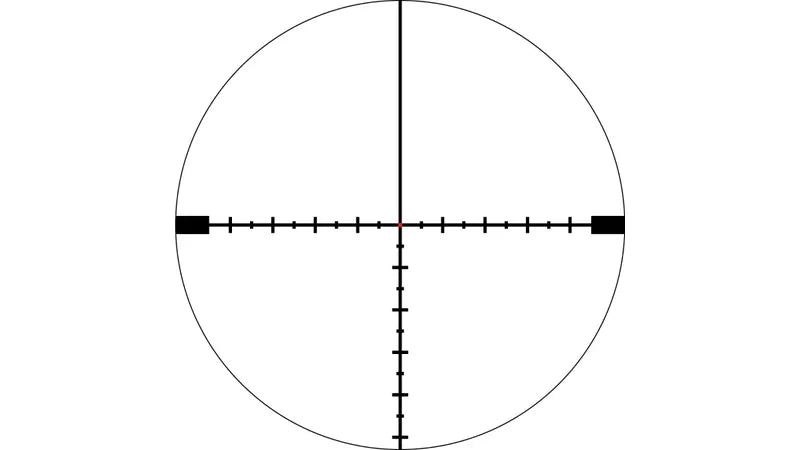

| Reticle | VMR-3 (MOA) |
| Eye Relief | 3.4" |
| Field of View | 24.0' - 4.7' @ 100 yds |
| Turret Style | Exposed Elevation Capped Windage |
| Tube Size | 30mm |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 25 MOA |
| Max Elevation Adjustment | 68 MOA |
| Total Elevation Adjustment w/ RevStop® installed | 47 MOA |
| Max Windage Adjustment | 42 MOA |
| Parallax Setting | 20 yds. - ∞ |
| Length | 15.2" |
| Weight | 25.0 oz |
