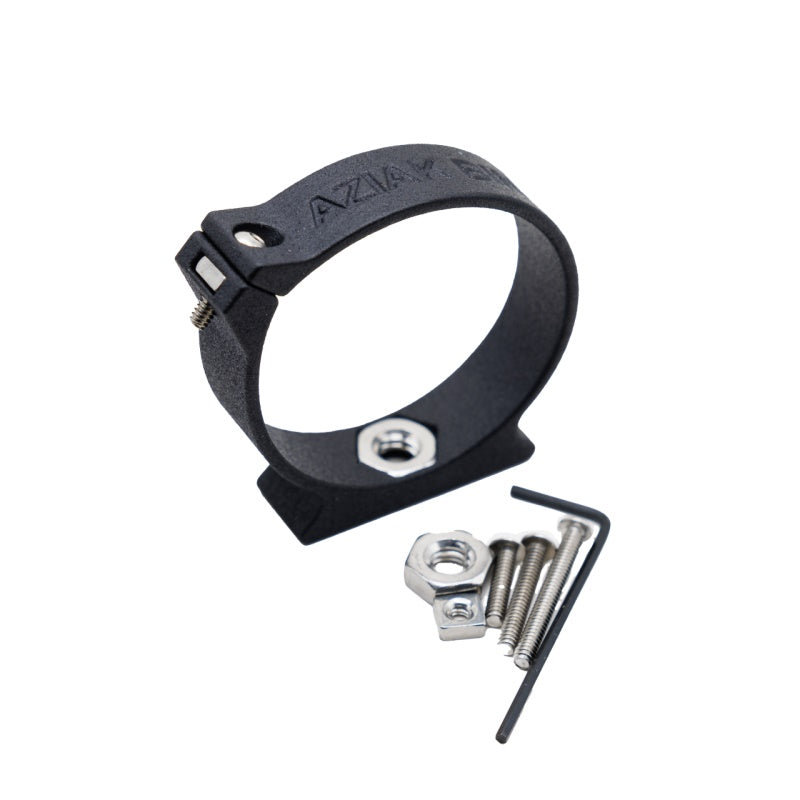

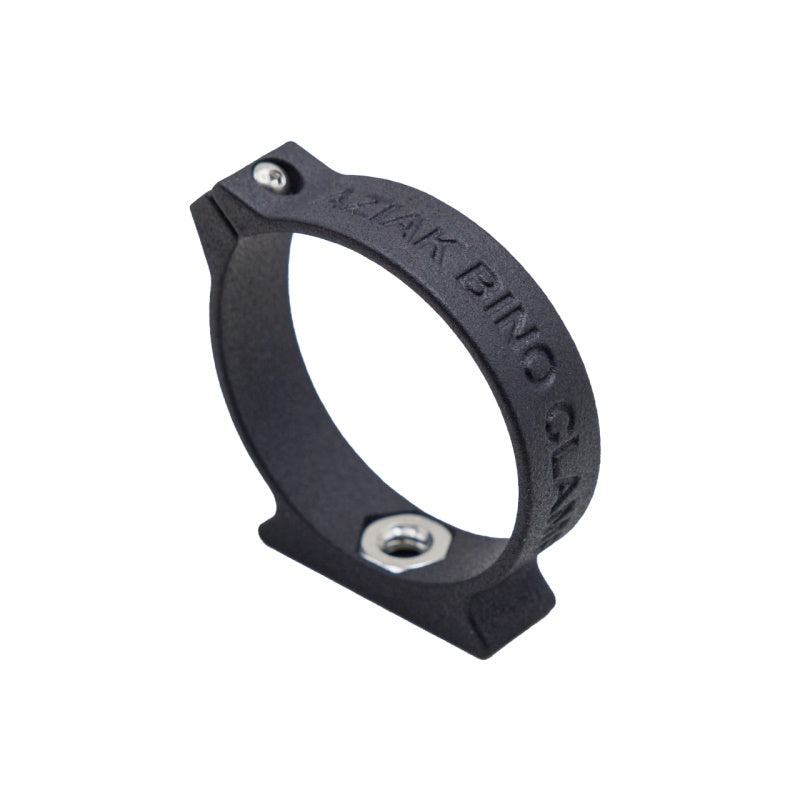

Aziak Equipment Bino Clamps

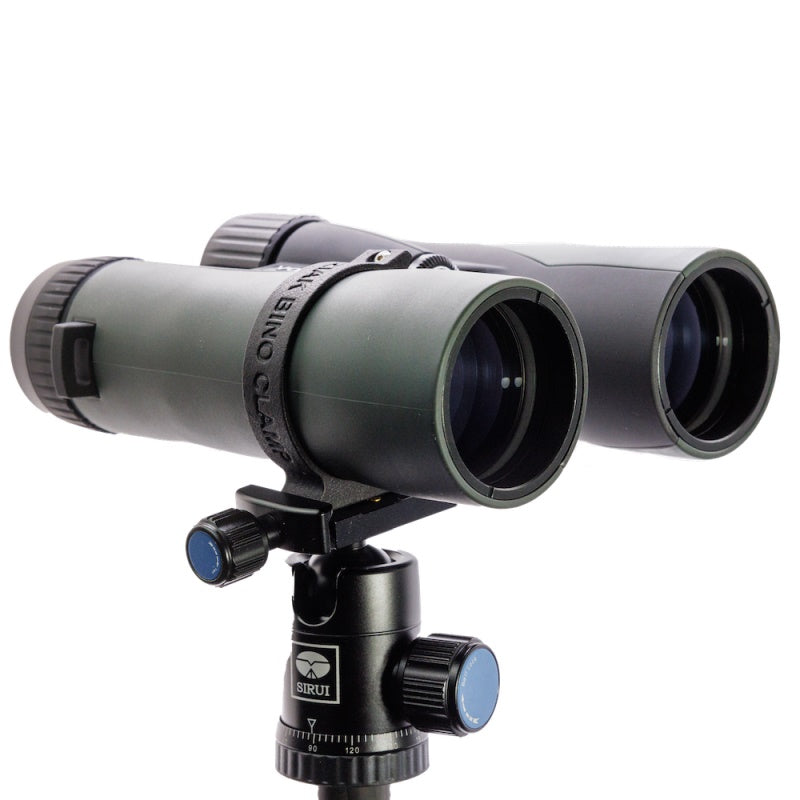

The Aziak Equipment Bino Clamp is the lightest, lowest profile, and most effective way to mount your binoculars to a tripod. Simply install the bino clamp onto your binoculars and you have a Arca-swiss compatible dovetail or 1/4-20 threads for any quick release plate to be mounted onto.

The Aziak Equipment Bino Clamp is currently offered in 4 sizes, each size has some overlap to the size smaller and the size larger to allow some room for error when measuring your binos for sizing. If you do happen to fall between sizes, look at how your binos are tapered where you want the clamp to sit - choose the smaller or larger size based on where else you  may want the clamp to attach.

Measurement Instructions

Bino Clamp measurement instructions:

There are two methods for finding your size. If you have calipers, head to method 2, otherwise continue with method 1 below.

METHOD 1

Step 1

To get started you will need:

-Binoculars
-Short section of dental floss or other small diameter string
-Ruler or tape measure
-Sharpie (Not required, but helpful)

Step 2

Choose where on your binos you want the clamp to sit. I recommend you place it as close to the center of gravity as possible - on most binos this is directly in front of the center pivot. (Except on open bridge binos, where you can put the clamp centered between the bridges). Wrap the small section of string tightly around the binoculars in the chosen location - you are trying to get the most accurate circumference measurement possible. Mark the location where the string completes one complete circle.

Step 3

Measure the length of the string with a ruler to within 1/16" to get the circumference of your binoculars. Compare with the sizing chart!

METHOD 2

Step 1

Using calipers, take two measurements of the diameter of your binoculars at the chosen location for the clamp - Not all binos are perfectly round (molded features in the rubber coating are common) so take an approximate average of these two measurements.

Step 2

Compare the diameter measurements you took with the chart!

Compatibility Chart

VORTEX
Razor UHD 8x42- Size #2
Razor UHD 10x42- Size #2
Razor UHD 10x50- Size #2
Razor UHD 12x50- Size #2
Razor UHD 15x56- Size #2
Razor 8x42- Size #1
Razor 10x42- Size #1
Razor 10x50- Size #1
Razor 12x50- Size #1
Viper HD 8x42- Size #2
Viper HD 10x42- Size #2
Viper HD 10x50- Size #2
Viper HD 12x50- Size #2
Viper HD 10x50 (Japan Model)- Size #3
Viper HD 12x50 (Japan Model)- Size #3
Kaibab 15x56- Size #4
Kaibab 18x56- Size #4
Kaibab 20x56- Size #4
Diamondback (Non-HD) 8X42- Size #2
Diamondback (Non-HD) 10X42- Size #2
Diamondback HD 8x42- Size #1
Diamondback HD 10x42- Size #1
Diamondback HD 10x50- Size #2
Diamondback HD 12x50- Size #2
Diamondback HD 15x56- Size #3
Crossfire (Non-HD) 8x42- Size #1
Crossfire (Non-HD) 10x42- Size #1
Crossfire HD 8x42- Size #1
Crossfire HD 10x42- Size #1
Crossfire HD 10x50- Size #3
Crossfire HD 12x50- Size #3
Fury HD- Size #3
Fury HD 5000- Size #3

SWAROVSKI
EL 10X42-Size #2
EL 8.5X42-Size #2
EL 10X50-Size #3
EL 12X50-Size #3
EL Range 10X42-Size #2
NL Pure 8x42-Size #1
NL Pure 10x42-Size #1
NL Pure 12x42-Size #1
SLC 8x56-Size #4
SLC 10x56-Size #4
SLC 15x56-Size #4
SLC 8x42- Size #2
SLC 10x42- Size #2

ZEISS
Victory SF 8x32-Size #1
Victory SF 10x32-Size #1
Victory SF 8X42- Size #2
Victory SF 10X42- Size #2
Victory RF 8X42- Size #3
Victory RF 10X42- Size #3
Victory T*RF 10X45- Size #4
Conquest HD 8X42- Size #2
Conquest HD 10X42- Size #2
Terra ED 8X42- Size #2
Terra ED 10X42- Size #2
Classic 10X40 B - Size #1

NIKON
Prostaff 3S 8x42 - Size #2
Prostaff 3S 10x42 - Size #2
Prostaff 5 10x50 - Size #3
Prostaff 5 12x50 - Size #3
Prostaff 7(S) 8x42 - Size #2
Prostaff 7(S) 10x42 - Size #2
Monarch ATB 8x42 - Size #2
Monarch ATB 10x42 - Size #2
Monarch ATB 12x42 - Size #2
Monarch 3 8x42 - Size #2
Monarch 3 10x42 - Size #2
Monarch 5 8x42 - Size #2
Monarch 5 10x42 - Size #2
Monarch 5 12x42 - Size #2
Monarch 7 8x42 - Size #2
Monarch 7 10x42 - Size #2
Monarch HG 8x42 - Size #2
Monarch HG 10x42 - Size #2
Laserforce 10X42 - Size #3
Aculon 10X42 - Size #2
Aculon 10-22X50 - Size #2

Sig Sauer
Zulu5 HD 10x42- Size #2
Zulu5 HD 12x42- Size #2
Zulu7 HDX 8x42- Size #2
Zulu7 HDX 10x42- Size #2
Zulu9 HDX 9x45- Size #3
Zulu9 HDX 11x45- Size #3
Zulu9 HDX 15x56- Size #4
Kilo 3000 10x42- Size #3
Kilo 10KABS HD- Size #3

Bushnell
Fusion X 10X42 - Size #3
Fusion 10X42 Rangefinder - Size #2
Legend 8X42 - Size #2
Legend 10X42 - Size #2
Legend 10X50 - Size #3
Legend 12X50 - Size #3

Meopta
Meostar B1 Plus 12X50 HD - Size #4
Optika HD 8X42 - Size #1
Optika HD 10X42 - Size #1
MeoPro Air HD 8X42 - Size #2
MeoPro Air HD 10X42 - Size #2

Tract
Tract Toric UHD 8X42- Size #2
Tract Toric UHD 10X42- Size #2
Tract Toric UHD 10X50- Size #3
Tract Toric UHD 12.5X50- Size #3

Leupold
Acadia 8X42- Size #2
Acadia 10X42- Size #2
BX-1 McKenzie 8X42- Size #2
BX-1 McKenzie 10X42- Size #2
BX-1 McKenzie 10X50- Size #3
BX-1 McKenzie 12x50- Size #3
BX-2 Acadia 8x42- Size #3
BX-2 Acadia 10x42- Size #3
BX-2 Alpine HD 8X42- Size #1
BX-2 Alpine HD 10X42- Size #1
BX-2 Alpine HD 10X52- Size #3
BX-2 Alpine HD 12X52- Size #3
BX-T HD 10X42 MIL-L- Size #1
BX-4 Pro Guide HD 8x42- Size #1
BX-4 Pro Guide HD 10x42- Size #1
BX-4 Pro Guide HD 10x50- Size #1
BX-4 Pro Guide HD 12x50- Size #1
BX-5 Santiam HD 8x42- Size #1
BX-5 Santiam HD 10x42- Size #1
BX-5 Santiam HD 10x50- Size #2
BX-5 Santiam HD 12x50- Size #2
BX-5 Santiam HD 15x56- Size #4

LEICA
Geovid 8X42 BRF- Size #3
Geovid 10X42 BRF- Size #3
Geovid 8X42 HD- Size #3
Geovid 10X42 HD- Size #3
Geovid R 8x42- Size #3
Geovid R 10x42- Size #3
Geovid R 15X56- Size #3
Geovid HD-B 8x42- Size #3
Geovid HD-B 10x42- Size #3
Geovid HD-R 8x42- Size #3
Geovid HD-R 10x42- Size #3
Geovid HD-B 2200 8x42- Size #3
Geovid HD-B 2200 10x42- Size #3
Geovid HD-B 3000 8x42- Size #3
Geovid HD-B 3000 10x42- Size #3
Geovid HD-R 2700 8x42- Size #3
Geovid HD-R 2700 10x42- Size #3
Geovid 3200.com 8x42- Size #3
Geovid 3200.com 10x42 - Size #3
Trinovid 10X40- Size #1
Trinovid HD 8X42- Size #2
Trinovid HD 10X42- Size #2
Noctivid 8X42- Size #2
Noctivid 10X42- Size #2

MAVEN
Maven B.1 8x42- Size #2
Maven B.1 10x42- Size #2
Maven B1.2 8X42- Size #2
Maven B1.2 8X42- Size #2
Maven B.2 7x45- Size #2
Maven B.2 9x45- Size #2
Maven B.2 11x45- Size #2
Maven B.6 10X50- Size #2
Maven B.6 12X50- Size #2
Maven C.1 8x42- Size #2
Maven C.1 10x42- Size #2
Maven C.1 12x42- Size #2
Maven C.3 10x50- Size #3
Maven C.3 12x50- Size #3

Vanguard
Endeavor ED 8X42- Size #2
Endeavor ED 10X42- Size #2
Endeavor ED II 8X42- Size #2
Endeavor ED II 10X42- Size #2
Endeavor ED IV 8X42- Size #2
Endeavor ED IV 10X42- Size #2
Veo ED 8X42- Size #2
Veo ED 10X42- Size #2
Veo HD 8X42- Size #2
Veo HD 10X42- Size #2
Veo HD II 8X42- Size #2
Veo HD II 10X42- Size #2
Spirit XF 8X42- Size #2
Spirit XF 10X42- Size #2

ATHLON
Neos G2 HD 8X42- Size #1
Neos G2 HD 10X42- Size #1
Argos G2 8X42- Size #1
Argos G2 10X42- Size #1
Argos G2 10X50- Size #1
Argos G2 12X50- Size #1
Argos G2 UHD 8X42- Size #1
Argos G2 UHD 10X42- Size #1
Midas G2 8X42- Size #1
Midas G2 10X42- Size #1
Midas G2 10X50- Size #3
Midas G2 12X50- Size #3
Cronus UHD RF 10X50- Size #3
Cronus G2 UHD 10X42- Size #1
Cronus G2 UHD 15X56- Size #4

STEINER
Predator 8X42 - Size #2
Predator 10X42 - Size #2
Predator 10X42 LRF - Size #2
Wildlife XP 10X44 - Size #2
XC 8X42 - Size #2
XC 10X42 - Size #2
HX 8X42 - Size #3
HX 10X42 - Size #3
T 10X42 - Size #2
Safari Ultrasharp 10X42 - Size #2
BluHorizons 10X42 - Size #2

Miscellaneous
Kowa Genesis Prominar 10.5X44- Size #2
Carson RD 10x42- Size #1
Burris Droptine 10x42- Size #2
Burris Signature HD 10X42- Size #2
Riton X5 Primal 10X42- Size #2
